LX450 Supermotard

ENGINE:

Engine Type

449cc liquid-cooled single-cylinder four stroke

Max Power

43 hp

Compression Ratio

11:1

Fuel Supply

TK® Carburetor

Ignition

Electric and Kick

DRIVE TRAIN:

Transmission

5-speed

Final Drive

#520 Chain KMC® ; 13T/46T

CHASSIS / SUSPENSION / BRAKES:

Frame

Aluminium alloy

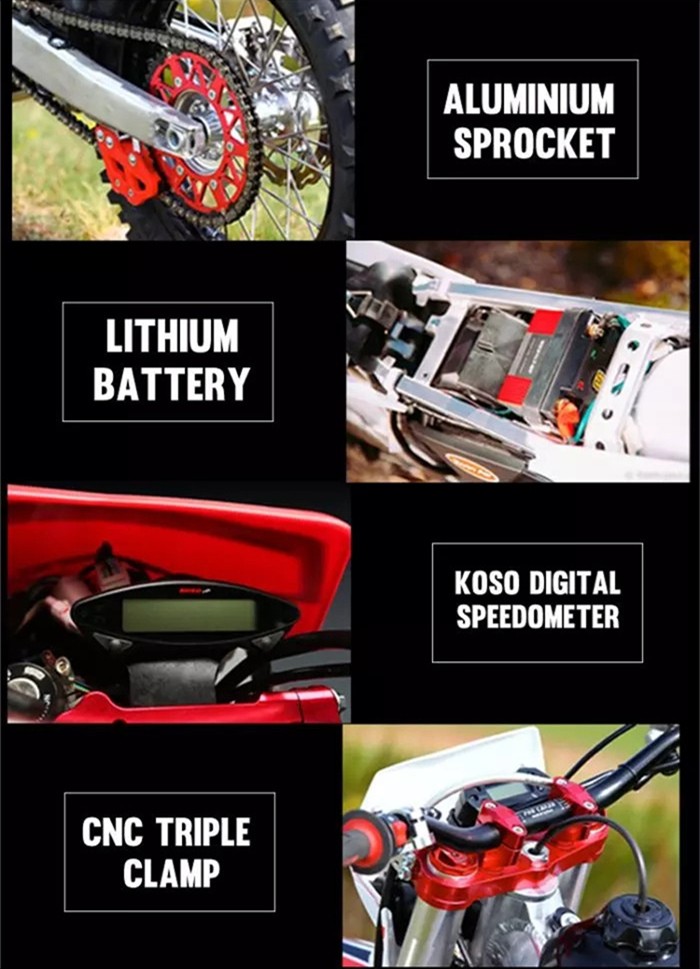

Speedometer

KOSO® digital

Triple Clamp

CNC machined and anodized

Air Filter

Twin Air®

Front Suspension

Fastace® 48mm inverted progressive fork

Rear Suspension

Fastace® single shock with airbag

Front and Rear Brake

Kailing® Off-Road brake system ,
Front single 290mm floating disc, Rear single 240mm disc

Front and Rear Wheel

3.5-17 / 4.25-17 , CNC hub with NSK® bearing ,                7075 alloy rim , Stainless steel spokes

Front and Rear Tire

CST® CM615 120/70-17'  |  CST C6502 150/70-17'

Light

Headlight, LED turn lights,Tail light

DIMENSIONS:

Size

2300mm*830mm*1240mm

Wheelbase

1500mm

Seat Height

930mm

Ground Clearance

300mm

Fuel Capacity

8L

Gross Weight

125kg

OTHERS:

Available Colors

White

Optional Genuine Parts：

NISSIN® brakes;  CNC aluminium engine protector;

Aluminium hand protector;  CNC rear rack,

Rear passenger foot pegs;  CNC rear brake caliper cover;

Rear brake pump bracket etc.
